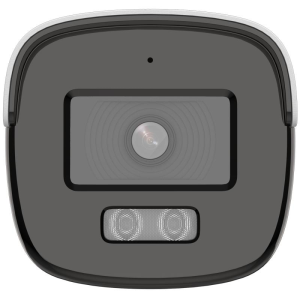

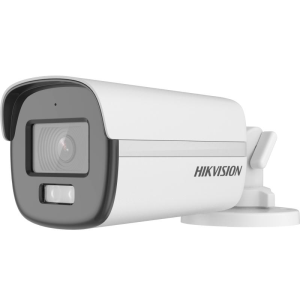

Hikvision Smart Hybrid Light 40m ColorVu Fixed Bullet 2MP Camera (2.8mm) Lens

Model of Product:

DS-2CE12DF0T-LFS

Description:

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• 3D DNR technology delivers clean and sharp images
• 2.8 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Up to 40 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)



Specification:

Camera:

Image Sensor2 MP CMOS

Max. Resolution1920 (H) × 1080 (V)

Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & NightICR

Angle AdjustmentPan: 0° to 360°,Tilt: 0° to 180°,Rotate: 0° to 360°

Signal SystemPAL/NTSC

Lens:

Lens Type –2.8 mm and 3.6 mm fixed focal lens

Focal Length & FOV:

2.8 mm, horizontal FOV -105°, vertical FOV: 56°, diagonal FOV: 126°

Lens Mount –M12

Illuminator:

Supplement Light Type-IR,

White Light-Supplement Light RangeIR: Up to 40 m,White Light: Up to 40 m

Smart Supplement Light-Yes

Image:

Image Parameters – SwitchSTD/HIGH-SAT/HIGHLIGHT

Image SettingsBrightness – Sharpness, Anti-banding, AGC

Frame Rate:

TVI: 1080p @25 fps/30 fps

CVI: 1080p @25 fps/30 fps

AHD: 1080p @25 fps/30 fps

CVBS: PAL/NTSC

Interface:

Video Output –Switchable TVI/AHD/CVI/CVBS

Built-In Microphone –Yes

General:

Material –Metal

Power –12 VDC ± 25%, max. 4.2 W,*You are recommended to use one power adapter to supply the power for one camera.

Dimension –192.2 mm × 78 mm × 74.5 mm (7.65″ × 3.07″ × 2.93″)

Weight –Approx. 525 g (1.16 lb.)

Operating Condition – -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Communication –HIKVISION-C

Language –English

Approval:

Protection –IP67
